QPLTRecord Class Reference

Access to QPLT data format. More...

#include <loggerio.h>

Inheritance diagram for QPLTRecord:

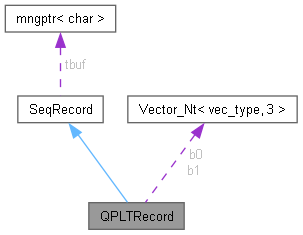

Collaboration diagram for QPLTRecord:

Public Member Functions
	QPLTRecord (size_t ds=sizeof(double), size_t dlen=1)
	constructor parameter dlen is the length of each slice
virtual int	SetDimensions (int D_, int dims_[4], const std::vector< std::string > *names_=NULL, const Vector_3 *b0_=NULL, const Vector_3 *b1_=NULL) override
	Sets dimensions for displaying data.
virtual void	CopyHeader (const SeqRecord &orig) override
	Copies data_size and seqlen from left argumnet to the right one.
virtual int	ReadHeaderFromFile (const std::string &name) override
	Reads seqlen form file name and calculates data_size by means of numslices and seqlen written there.
virtual int	OpenRecord (const std::string &name, const char *mode="w", const int shift=-1) override
	opens a file if the mode is "w" then replaces the old file if it exists and starts new record if the mode is "a" then appends the old file if it exists (after checking format ) or starts new record if not if the mode is "r" analyses the given file (checks it format) and can perform GetData() if the mode is "ar" can do both reading and appending other combinations of r and w are not supported record will start from shift slice
virtual int	AppendData (const void *rec, size_t arrlen=1, bool recorded=true) override
	appends next arrlen records to a file from rec array if arrlen exceeds the maximum number left for current slice, appends the correct number of elements only DATA IS APPENDED BY COPYING FROM MEMORY (using fwrite) <- this behaviour may be changed in the future... returns the number of elements appended
virtual int	SetTextHeader (const std::string &head_) override
	Set slice (frame) text header .
virtual int	NextSlice (bool recorded=true) override
	switches to the next slice
virtual int	CloseRecord () override
	closes the file
int	GetData (void *rec, size_t slicenum, size_t beg=0, size_t end=0) override
	gets data from slice slicenum starting from beg till end all counters start from zero returns the number of elements read
Public Member Functions inherited from SeqRecord
	SeqRecord (size_t ds=sizeof(double), size_t dlen=1, bool if_header_=true)
	constructor parameter dlen is the length of each slice
int	SetDataSize (size_t ds)
	returns -2 if file is open: can't change existing file
virtual int	SetSliceLookup (const std::vector< int > &slookup_, ptrdiff_t numslice_limit=-1)
	Lookup for slice number shift with respect to current position.
const size_t	GetCurrentSlice () const
	Gets the current slice (frame) being recorded.

Protected Attributes
uint32_t	D
	grid dimension
uint32_t	dims [4]
	grid sizes for dimensions 0...D-1
size_t	full_hsz
	full header size
Vector_3	b0
	Real space mesh limits.
std::string	text_head
	information to put in each frame
Protected Attributes inherited from SeqRecord
size_t	data_size
	length of unit data in bytes
size_t	seqlen
	length of the data sequence
FILE *	file
	current file
size_t	rest
	the maximum number left for the last slice
size_t	numslices
	the current number of slices
bool	if_header
	presence of header at the begining of the file
long long	pos
	position in file
size_t	full_hsz
	full header size
ptrdiff_t	numlim = -1
	num slices limit for the file, -1 if not used
std::vector< int >	slookup
	slice shift lookup table
int	max_slice_shift = 0
	span of slice shifts (positive only)

Detailed Description

Access to QPLT data format.

Member Function Documentation

CloseRecord()

virtual int QPLTRecord::CloseRecord ( )

inlineoverridevirtual

closes the file

Returns

the current slice number

Reimplemented from SeqRecord.

NextSlice()

virtual int QPLTRecord::NextSlice ( bool  recorded = true )

inlineoverridevirtual

switches to the next slice

Returns

the current slice number or <0 in case of error

Reimplemented from SeqRecord.

OpenRecord()

virtual int QPLTRecord::OpenRecord ( const std::string &  name, const char *  mode = "w", const int  shift = -1  )

inlineoverridevirtual

opens a file if the mode is "w" then replaces the old file if it exists and starts new record if the mode is "a" then appends the old file if it exists (after checking format ) or starts new record if not if the mode is "r" analyses the given file (checks it format) and can perform GetData() if the mode is "ar" can do both reading and appending other combinations of r and w are not supported record will start from shift slice

Returns

the current slice number, -2 if file is already open

Reimplemented from SeqRecord.

ReadHeaderFromFile()

virtual int QPLTRecord::ReadHeaderFromFile ( const std::string &  name )

inlineoverridevirtual

Reads seqlen form file name and calculates data_size by means of numslices and seqlen written there.

This function was produced to automaticaly detect SeqRecord parameters for a file. The function does neither set file parameter nor the numslices feild of SeqRecord rec.

Reimplemented from SeqRecord.

SetDimensions()

virtual int QPLTRecord::SetDimensions ( int  D_, int  dims_[4], const std::vector< std::string > *  names_ = NULL, const Vector_3 *  b0_ = NULL, const Vector_3 *  b1_ = NULL  )

inlineoverridevirtual

Sets dimensions for displaying data.

Flips according to QPLT format (x axis is the first changing). Vectors

• b0 and
• b1 define mesh box coordinates.

Reimplemented from SeqRecord.

SetTextHeader()

virtual int QPLTRecord::SetTextHeader ( const std::string &  head_ )

inlineoverridevirtual

Set slice (frame) text header .

Supported by QPLT format. The information will be used while writing the next slice header.

Reimplemented from SeqRecord.

---

The documentation for this class was generated from the following file:

• loggerio.h
